NGTG20N60L2TF1G IGBT

ON Semiconductor

NGTG20N60L2TF1G Description

Ordering number : ENA2202 NGTG20N60L2TF1G N-Channel IGBT 600V, 20A, VCE(sat);1.45V Single TO-3PF-3L http://onsemi.com .

NGTG20N60L2TF1G Features

* IGBT VCE(sat)=1.45V typ. (IC=20A, VGE=15V)
* IGBT tf=67ns typ.
* Enhansment type
* Adaption of full isolation type package

NGTG20N60L2TF1G Applications

* Power factor correction of white goods appliance
* General purpose inverter Specifications Absolute Maximum Ratings at Ta = 25°C, Unless otherwise specified Parameter Symbol Conditions Ratings Unit Collector to Emitter Voltage Gate to Emitter Voltage Collector Current (DC)

📥 Download Datasheet

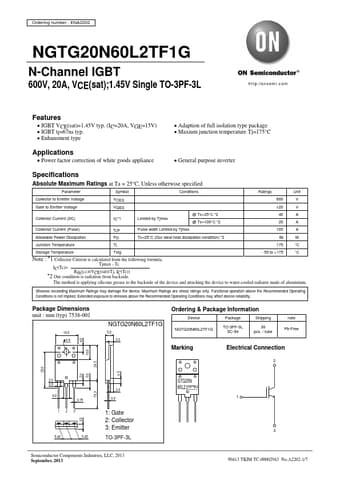

NGTG20N60L2TF1G Datasheet Preview — Preview of NGTG20N60L2TF1G PDF
