* http://onsemi.com MARKING DIAGRAM SOT
* 953 CASE 527AE AM 1
* High Speed: tPD = 3.0 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin
NL17SH00P5T5G Datasheet (102.52 KB)
NL17SH00P5T5G
102.52 KB
Single 2-input nand gate.

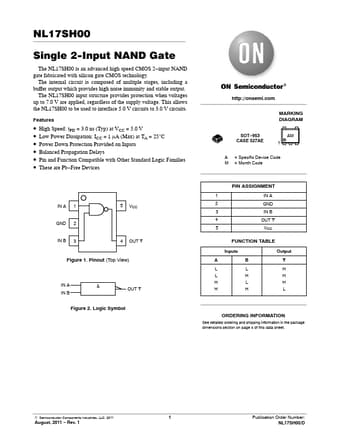

NL17SH00 Single 2-Input NAND Gate
The NL17SH00 is an advanced high speed CMOS 2
*input NAND gate fabricated with silicon gate CMOS technology. .
📁 Related Datasheet
NL17SH00 - Single 2-Input NAND Gate
(ON Semiconductor)
NL17SH00 Single 2-Input NAND Gate
The NL17SH00 is an advanced high speed CMOS 2−input NAND gate fabricated with silicon gate CMOS technology. The inte.
