NL17SH02 - Single 2-Input NOR Gate

ON Semiconductor

📥 Download Datasheet

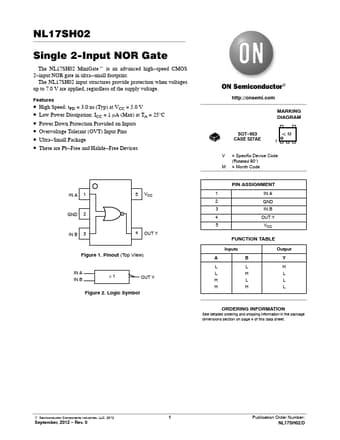

NL17SH02 Datasheet Preview — Preview of NL17SH02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NL17SH02
Manufacturer: ON Semiconductor ↗
File Size: 91.42 KB
Datasheet: NL17SH02-ONSemiconductor.pdf
Description: Single 2-Input NOR Gate

NL17SH02 Product details

Features

High Speed: tPD = 3.0 ns (Typ) at VCC = 5.0 V.
Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C.
Power Down Protection Provided on Inputs.
Overvoltage Tolerant (OVT) Input Pins.
Ultra.
Small Package.
These are Pb.
Free and Halide.
Free Devices IN A 1 GND 2 IN B 3 5 VCC 4 OUT Y Figure 1. Pinout (Top View) IN A IN B ≥ 1 OUT Y Figure 2. Logic Symbol http://onsemi. com.
