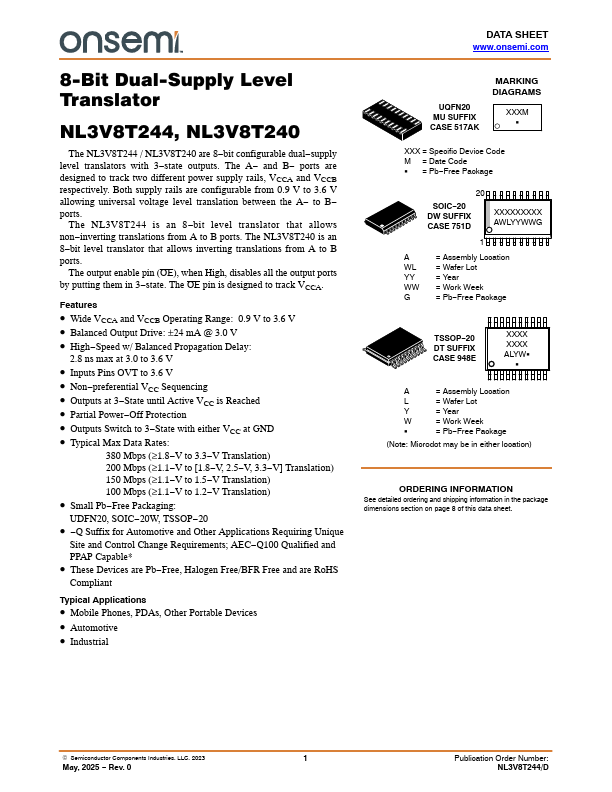

NL3V8T244 - 8-Bit Dual-Supply Level Translator

ON Semiconductor

NL3V8T244 Datasheet Preview — Preview of NL3V8T244 PDF

Datasheet Details

Part number	NL3V8T244
Manufacturer	ON Semiconductor ↗
File Size	206.88 KB
Description	8-Bit Dual-Supply Level Translator
Datasheet	NL3V8T244-ONSemiconductor.pdf

NL3V8T244 Product details

Description

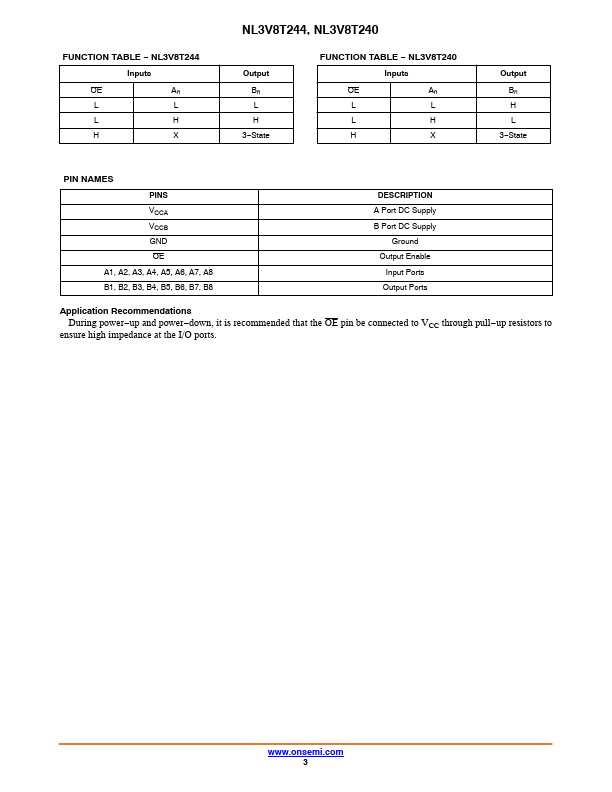

A Port DC Supply B Port DC Supply Ground Output Enable Input Ports Output Ports Application Recommendations During power up and power down, it is recommended that the OE pin be connected to VCC through pull up resistors to ensure high impedance at the I/O ports. State Mode)

Features

Wide VCCA and VCCB Operating Range: 0.9 V to 3.6 V.
Balanced Output Drive: ±24 mA @ 3.0 V.
High.
Speed w/ Balanced Propagation Delay: 2.8 ns max at 3.0 to 3.6 V.
Inputs Pins OVT to 3.6 V.
Non.
preferential VCC Sequencing.
Outputs at 3.
State until Active VCC is Reached.
Partial Power.
Off Protection.
Outputs Switch to 3.
State with either VCC at GND.
Typical Max Data Rates: 380 Mb.
