NLSV2T240 2-Bit Dual-Supply Non-Inverting Level Translator

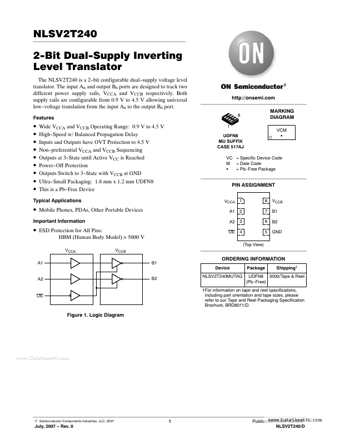

📥 Download Datasheet Datasheet Preview Page 1

Description

NLSV2T240 2-Bit Dual-Supply Inverting Level Translator The NLSV2T240 is a 2-bit configurable dual-supply voltage level translator.The input An and ou.

📥 Download Datasheet

Preview of NLSV2T240 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* http://onsemi. com MARKING DIAGRAM VCM G 8 1 UDFN8 MU SUFFIX CASE 517AJ
* ăWide VCCA and VCCB Operating Range: 0.9 V to 4.5 V
* ăHigh-Speed w/ Balanced Propagation Delay
* ăInputs and Outputs have OVT Protection to 4.5 V
* ăNon-preferential VCCA and VCCB Sequencing

Applications

* VC = Specific Device Code M = Date Code G = Pb-Free Package PIN ASSIGNMENT VCCA A1 A2 OE 1 2 3 4 (Top View) 8 7 6 5 VCCB B1 B2 GND
* ăMobile Phones, PDAs, Other Portable Devices Important Information
* ăESD Protection for All Pins: HBM (Human Body Model) > 5000 V VCCA A1 VCCB B1 O
