Part number:
NLX1G332
Manufacturer:
File Size:
71.01 KB
Description:
3-input or gate.

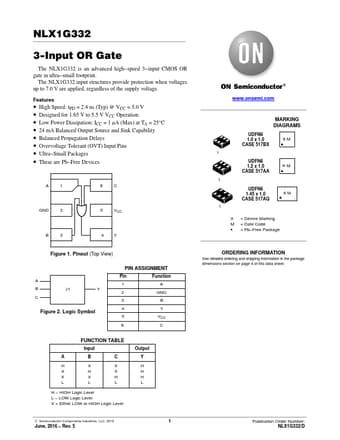

NLX1G332 3-Input OR Gate The NLX1G332 is an advanced high speed 3 input CMOS OR gate in ultra small footprint. The NLX1G332 i.
* High Speed: tPD = 2.4 ns (Typ) @ VCC = 5.0 V
* Designed for 1.65 V to 5.5 V VCC Operation
* Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C
* 24 mA Balanced Output Source and Sink Capability
* Balanced Propagation Delays
* Overvoltage Tolerant (
NLX1G332
71.01 KB
3-input or gate.
NLX1G332 3-Input OR Gate The NLX1G332 is an advanced high speed 3 input CMOS OR gate in ultra small footprint. The NLX1G332 i.
