NLX1G57 - Configurable Multifunction Gate

ON Semiconductor

📥 Download Datasheet

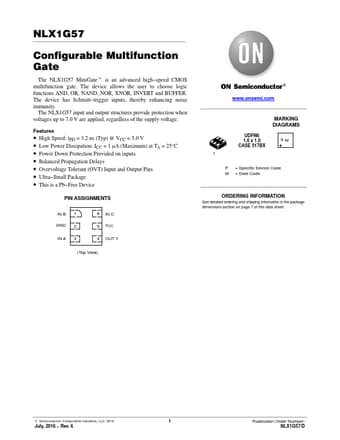

NLX1G57 Datasheet Preview — Preview of NLX1G57 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NLX1G57
Manufacturer	onsemi ↗.com' style='color: #000;'>ON Semiconductor ↗
File Size	70.67 KB
Description	Configurable Multifunction Gate
Datasheet	NLX1G57_ONSemiconductor.pdf

NLX1G57 Product details

Features

High Speed: tPD = 3.2 ns (Typ) @ VCC = 5.0 V.
Low Power Dissipation: ICC = 1 mA (Maximum) at TA = 25°C.
Power Down Protection Provided on inputs.
Balanced Propagation Delays.
Overvoltage Tolerant (OVT) Input and Output Pins.
Ultra.
Small Package.
This is a Pb.
Free Device PIN.
