NRVB0540T1G Surface Mount Schottky Power Rectifier

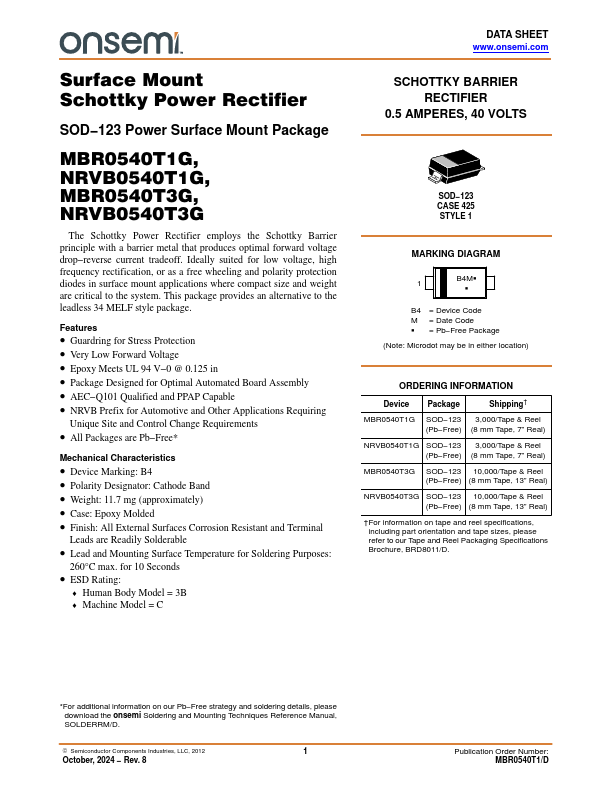

Surface Mount Schottky Power Rectifier SOD 123 Power Surface Mount Package MBR0540T1G, NRVB0540T1G, MBR0540T3G, NRVB0540T3G The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as a free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system..

NRVB0540T1G Features

* Guardring for Stress Protection

* Very Low Forward Voltage

* Epoxy Meets UL 94 V

* 0 @ 0.125 in

* Package Designed for Optimal Automated Board Assembly

* AEC

* Q101 Qualified and PPAP Capable

* NRVB Prefix for Automotive and Other Applica
