NSBA143TDXV6, Dual PNP Bias Resistor Transistors

MUN5116DW1, NSBA143TDXV6 Dual PNP Bias Resistor Transistors R1 = 4.7 kW, R2 = 8 kW PNP Transistors with Monolithic Bias Resistor Network This series.

NSBA143TDXV6-ONSemiconductor.pdf

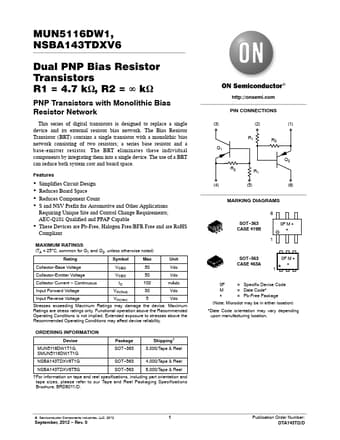

NSBA143TDXV6 Datasheet Preview — Preview of NSBA143TDXV6 PDF

Datasheet Details

Part number:

NSBA143TDXV6

Manufacturer:

ON Semiconductor ↗

File Size:

126.65 KB

Description:

Dual PNP Bias Resistor Transistors

Features

* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count

Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25C, common for Q1 and Q2, unless otherwise noted) Rating Symbol Max Unit Collector-Base Voltage VCBO
