NSBA143TDXV6T1G, NSBA143TDXV6, Dual PNP Bias Resistor Transistors

MUN5116DW1, NSBA143TDXV6 Dual PNP Bias Resistor Transistors R1 = 4.7 kW, R2 = 8 kW PNP Transistors with Monolithic Bias Resistor Network This series.

NSBA143TDXV6-ONSemiconductor.pdf

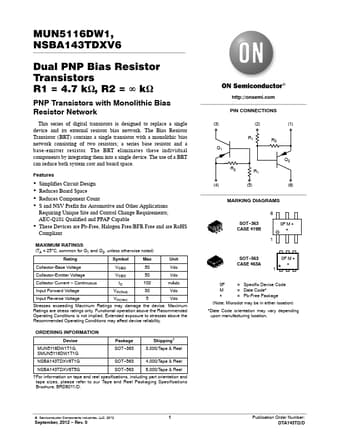

NSBA143TDXV6T1G Datasheet Preview — This datasheet PDF includes multiple part numbers: NSBA143TDXV6T1G, NSBA143TDXV6. Please refer to the document for exact specifications by model.

NSBA143TDXV6T1G Datasheet Preview Page 2

NSBA143TDXV6T1G Datasheet Preview Page 3

Datasheet Details

Part number:

NSBA143TDXV6T1G, NSBA143TDXV6

Manufacturer:

ON Semiconductor ↗

File Size:

126.65 KB

Description:

Dual PNP Bias Resistor Transistors

Note:

This datasheet PDF includes multiple part numbers: NSBA143TDXV6T1G, NSBA143TDXV6.
Please refer to the document for exact specifications by model.

Features

* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count

Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25C, common for Q1 and Q2, unless otherwise noted) Rating Symbol Max Unit Collector-Base Voltage VCBO
