NSBC113EF3 Digital Transistors

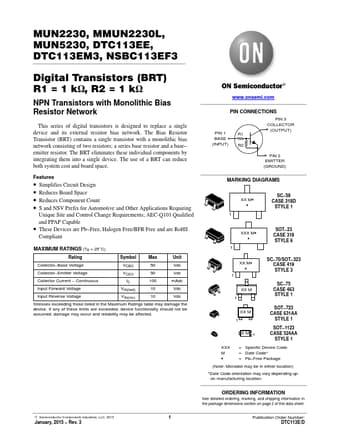

MUN2230, MMUN2230L, MUN5230, DTC113EE, DTC113EM3, NSBC113EF3 Digital Transistors (BRT) R1 = 1 kW, R2 = 1 kW NPN Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individual c.

NSBC113EF3 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free,

NSBC113EF3 Datasheet (103.80 KB)
