NSBC114EF3 - Digital Transistors

Digital Transistors (BRT) R1 = 10 kW, R2 = 10 kW NPN Transistors with Monolithic Bias Resistor Network MUN2211, MMUN2211L, MUN5211, DTC114EE, DTC114EM3, NSBC114EF3 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individua.

NSBC114EF3 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

* Q101 Qualified and PPAP Capable

* These Devices are Pb

NSBC114EF3-ONSemiconductor.pdf

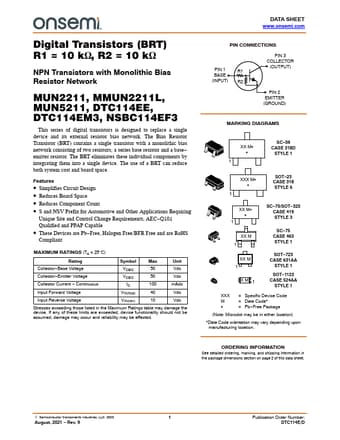

Preview of NSBC114EF3 PDF
NSBC114EF3 Datasheet Preview Page 2 NSBC114EF3 Datasheet Preview Page 3

Datasheet Details

Part number:

NSBC114EF3

Manufacturer:

ON Semiconductor ↗

File Size:

408.25 KB

Description:

Digital transistors.
