NSBC114EMXWTBG Datasheet - ON Semiconductor

NSBC114EMXWTBG - Bias Resistor Transistors

Bias Resistor Transistors (BRT) NPN, 50 V, 100 mA NSBCMXW Series The series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor contains a single transistor with a monolithic bias network consisting of two resistors: a series base resistor and a base emitter resistor.

The BRT eliminates these individual components by integrating them into a single device.

The use of a BRT can reduce both system cost and board

NSBC114EMXWTBG Features

* Built in Bias Resistors

* Complimentary PNP Types Available

* XDFNW3 Package Offers Low Seated Height

* 0.44 mm Max

* Wettable Flank Package for Optimal Automated Optical Inspection (AOI)

* NSV Prefix for Automotive and Other Applications Requiring U

NSBC114EMXWTBG-ONSemiconductorpdf

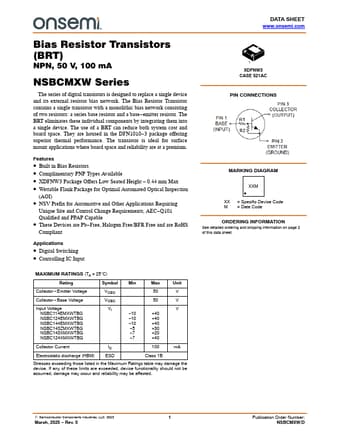

Preview of NSBC114EMXWTBG PDF

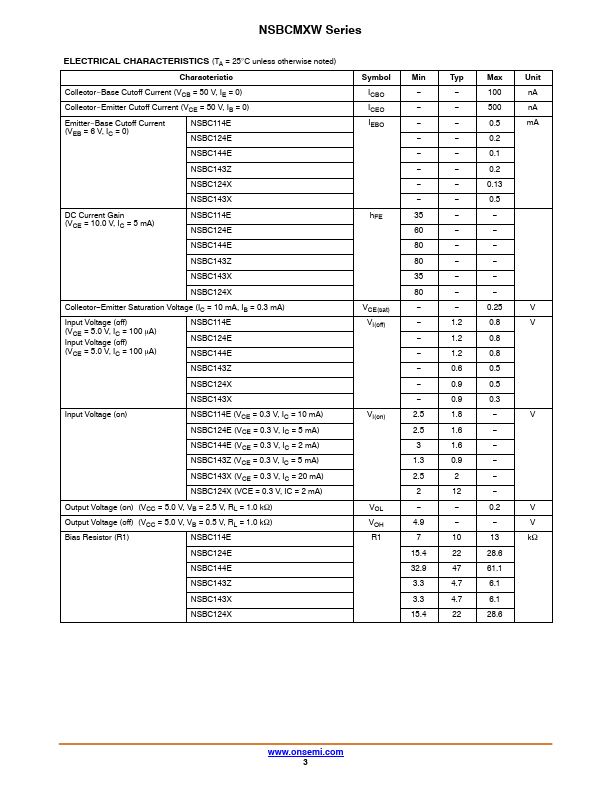

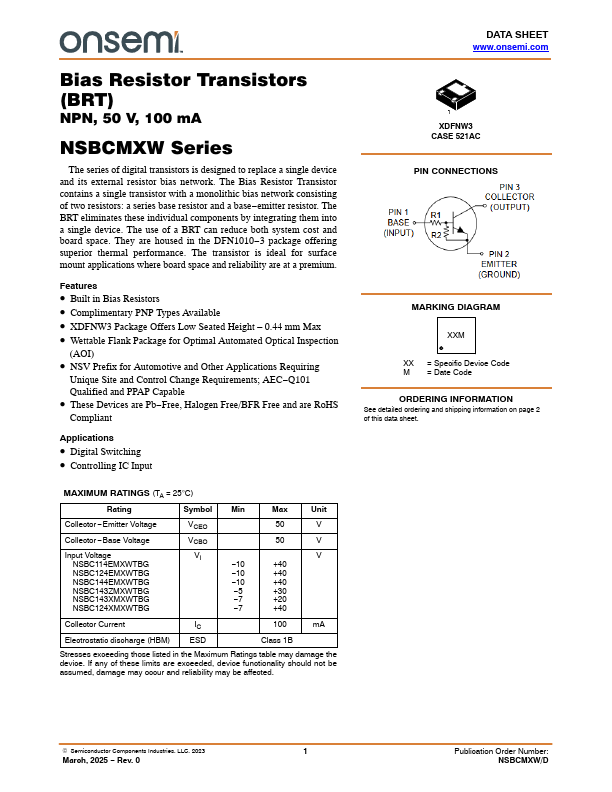

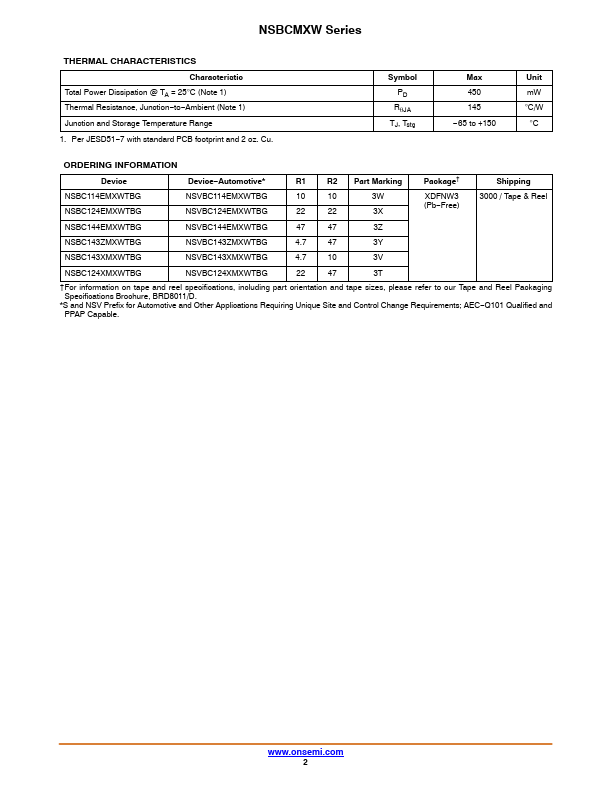

NSBC114EMXWTBG Datasheet Preview Page 2 NSBC114EMXWTBG Datasheet Preview Page 3

Datasheet Details

Part number:

NSBC114EMXWTBG

Manufacturer:

ON Semiconductor ↗

File Size:

171.62 KB

Description:

Bias resistor transistors.
