NSBC114YDP6 Dual NPN Bias Resistor Transistors

Dual NPN Bias Resistor Transistors R1 = 10 kW, R2 = 47 kW NPN Transistors with Monolithic Bias Resistor Network MUN5214DW1, NSBC114YDXV6, NSBC114YDP6 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrat.

NSBC114YDP6 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb-Free, Ha

NSBC114YDP6 Datasheet (395.83 KB)

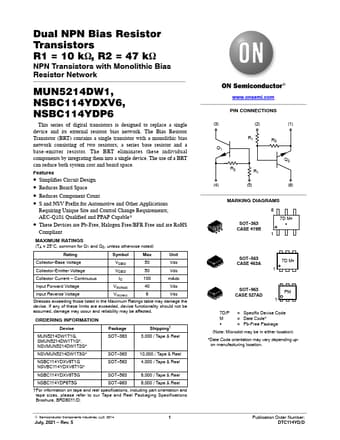

Preview of NSBC114YDP6 PDF
NSBC114YDP6 Datasheet Preview Page 2 NSBC114YDP6 Datasheet Preview Page 3

Datasheet Details

Part number:

NSBC114YDP6

Manufacturer:

ON Semiconductor ↗

File Size:

395.83 KB

Description:

Dual npn bias resistor transistors.
