NSBC114YPDP6, NSBC114YPDXV6 Complementary Bias Resistor Transistors

NSBC114YPDP6 Description

MUN5314DW1, NSBC114YPDXV6, NSBC114YPDP6 Complementary Bias Resistor Transistors R1 = 10 kW, R2 = 47 kW NPN and PNP Transistors with Monolithic Bias .

NSBC114YPDP6 Features

* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count

NSBC114YPDP6 Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C both polarities Q1 (PNP) & Q2 (NPN), unless

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NSBC114YPDP6, NSBC114YPDXV6. Please refer to the document for exact specifications by model.

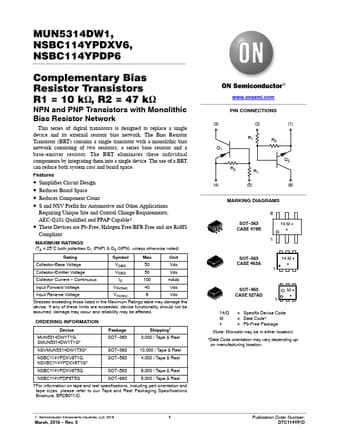

datasheet Preview Page 2 datasheet Preview Page 3
