NSBC143TDXV6 Datasheet - ON Semiconductor

NSBC143TDXV6 - Dual NPN Bias Resistor Transistors

MUN5216DW1, NSBC143TDXV6 Dual NPN Bias Resistor Transistors R1 = 4.7 kW, R2 = 8 kW NPN Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual components by integrating t

NSBC143TDXV6 Features

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* These Devices are Pb

* Free,

NSBC143TDXV6-ONSemiconductor.pdf

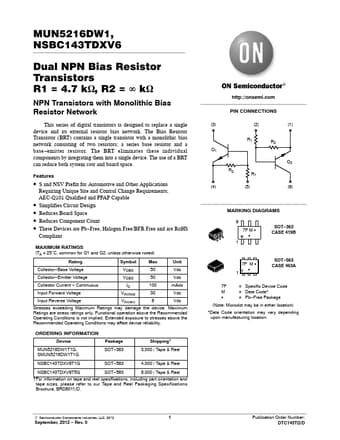

Preview of NSBC143TDXV6 PDF
NSBC143TDXV6 Datasheet Preview Page 2 NSBC143TDXV6 Datasheet Preview Page 3

Datasheet Details

Part number:

NSBC143TDXV6

Manufacturer:

ON Semiconductor ↗

File Size:

107.59 KB

Description:

Dual npn bias resistor transistors.
