NTMD4184PF, Power MOSFET and Schottky Diode

MOSFET * Power, Single, P-Channel, Schottky Diode, Schottky Barrier Diode -30 V, -4.0 A, 20 V, 2.2 A NTMD4184PF .

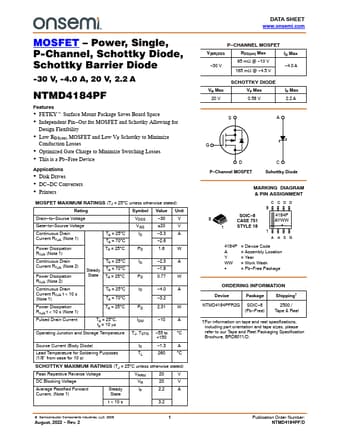

datasheet Preview Page 1 from Datasheet4u.com

NTMD4184PF_ONSemiconductor.pdf

NTMD4184PF Datasheet Preview — Preview of NTMD4184PF PDF

Datasheet Details

Part number:

NTMD4184PF

Manufacturer:

ON Semiconductor ↗

File Size:

213.44 KB

Description:

Power MOSFET and Schottky Diode

Features

* FETKYt Surface Mount Package Saves Board Space
* Independent Pin
* Out for MOSFET and Schottky Allowing for Design Flexibility
* Low RDS(on) MOSFET and Low VF Schottky to Minimize Conduction Losses
* Optimized Gate Charge to Minimize Switching Losses
* This is a Pb

Applications

* Disk Drives
* DC
* DC Converters
* Printers MOSFET MAXIMUM RATINGS (TJ = 25C unless otherwise stated) Rating Symbol Value Unit Drain
* to
* Source Voltage VDSS
* 30 V Gate
* to
* Source Voltage VGS 20 V Continuous Drain Current RqJA (N
