NTP110N65S3HF - N-Channel MOSFET

Datasheet Summary

Description

SUPERFET III MOSFET is ON Semiconductor’s brand new high voltage super junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on

resistance and lower gate charge performance.

Features

  • 700 V @ TJ = 150°C.
  • Typ. RDS(on) = 98 mW.
  • Ultra Low Gate Charge (Typ. Qg = 62 nC).
  • Low Effective Output Capacitance (Typ. Coss(eff. ) = 522 pF).
  • 100% Avalanche Tested.
  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

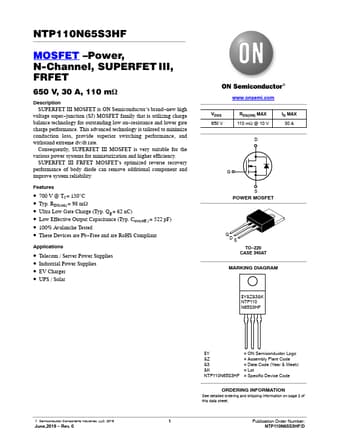

Datasheet preview – NTP110N65S3HF
