NTSB20120CTG, NTST20120CT Very Low Forward Voltage Trench-based Schottky Rectifier

NTSB20120CTG Description

NTST20120CT, NTSJ20120CTG, NTSB20120CT-1G, NTSB20120CTG, NTSB20120CTT4G Very Low Forward Voltage Trench-based Schottky Rectifier Exceptionally Low VF .

NTSB20120CTG Features

* http://onsemi. com VERY LOW FORWARD VOLTAGE, LOW LEAKAGE SCHOTTKY BARRIER RECTIFIERS 20 AMPERES, 120 VOLTS PIN CONNECTIONS 1 2, 4 3 4
* Fine Lithography Trench
* based Schottky Technology for Very Low
* Forward Voltage and Low

NTSB20120CTG Applications

* Switching Power Supplies including Notebook / Netbook Adapters,
* ATX and Flat Panel Display High Frequency and DC
* DC Converters Freewheeling and OR
* ing diodes Reverse Battery Protection Instrumentation 1 2 TO
* 220AB CASE 221A S

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NTSB20120CTG, NTST20120CT. Please refer to the document for exact specifications by model.

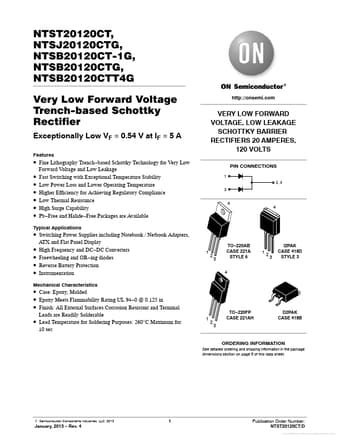

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NTSB20120CTG, NTST20120CT
Manufacturer
ON Semiconductor ↗
File Size
153.00 KB
Datasheet
NTST20120CT_ONSemiconductor.pdf
Description
Very Low Forward Voltage Trench-based Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: NTSB20120CTG, NTST20120CT.
Please refer to the document for exact specifications by model.
