NTSB40120CT-1G, NTST40120CT Very Low Forward Voltage Trench-based Schottky Rectifier

NTSB40120CT-1G Description

NTST40120CT, NTSJ40120CTG, NTSB40120CT-1G, NTSB40120CTG, NTSB40120CTT4G Very Low Forward Voltage Trench-based Schottky Rectifier Exceptionally Low VF.

NTSB40120CT-1G Features

* Fine Lithography Trench
* based Schottky Technology for Very Low Forward Voltage and Low Leakage
* Fast Switching with Exceptional Temperature Stability
* Low Power Loss and Lower Operating Temperature
* Higher Efficiency for Achieving Regulatory Compliance

NTSB40120CT-1G Applications

* Switching Power Supplies including Notebook/Netbook Adapters, ATX and Flat Panel Display
* High Frequency and DC
* DC Converters
* Freewheeling and OR
* ing Diodes
* Reverse Battery Protection
* Instrumentation Mechanical Characteristics

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NTSB40120CT-1G, NTST40120CT. Please refer to the document for exact specifications by model.

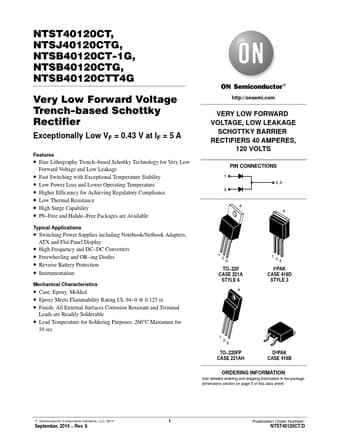

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NTSB40120CT-1G, NTST40120CT
Manufacturer
ON Semiconductor ↗
File Size
103.79 KB
Datasheet
NTST40120CT_ONSemiconductor.pdf
Description
Very Low Forward Voltage Trench-based Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: NTSB40120CT-1G, NTST40120CT.
Please refer to the document for exact specifications by model.
