NUD3160 Industrial Inductive Load Driver

DATA SHEET www.onsemi.com Industrial Inductive Load Driver NUD3160, SZNUD3160 This micro integrated part provides a single component solution to switch inductive loads such as relays, solenoids, and small DC motors without the need of a free wheeling diode. It accepts logic level inputs, thus allowing it to be driven by a large variety of devices including logic gates, inverters, and microcontrollers. 3 1 2 SOT 23 CASE 318 STYLE 21 6 1 SC 74 CASE 318F STYLE 7 .

NUD3160 Features

* Provides Robust Interface between D.C. Relay Coils and Sensitive Logic

* Capable of Driving Relay Coils Rated up to 150 mA at 12 V, 24 V or 48 V

* Replaces 3 or 4 Discrete Components for Lower Cost

* Internal Zener Eliminates Need for Free

* Wheeling Diode

NUD3160_ONSemiconductor.pdf

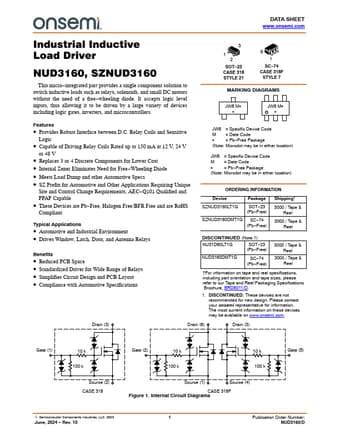

Preview of NUD3160 PDF
NUD3160 Datasheet Preview Page 2 NUD3160 Datasheet Preview Page 3

Datasheet Details

Part number:

NUD3160

Manufacturer:

ON Semiconductor ↗

File Size:

261.01 KB

Description:

Industrial inductive load driver.
