NVG450A120L5DSC

Automotive Dual Side Cooling Half-Bridge Power Module

NVG450A120L5DSC Features

* Dual

* Side Cooling

* Integrated Chip Level Temperature & Current Sensor

* Tvj max = 175°C

* Low Stray Inductance

* Low Conduction and Switching Losses

* Automotive Grade

* 4.2 kV Isolated DBC Substrate

* This is a Pb

* Fr

NVG450A120L5DSC General Description

The NVG450A120L5DSC is a member of the VE

*Trac Dual power module family with dual side cooling and compact footprints for Hybrid (HEV) and Electric Vehicle (EV) traction inverter application. The module consists of two latest 1200 V Ultra Field Stop (UFS) IGBTs in a half

*bridge confi.

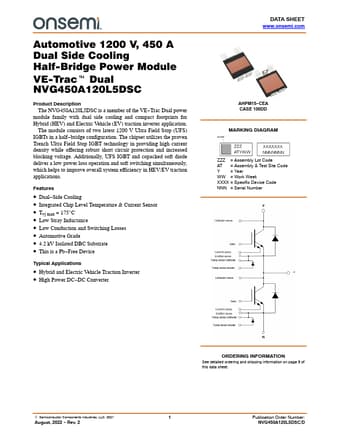

NVG450A120L5DSC Datasheet (312.72 KB)

Preview of NVG450A120L5DSC PDF

Datasheet Details

Part number:

NVG450A120L5DSC

Manufacturer:

ON Semiconductor ↗

File Size:

312.72 KB

Description:

Automotive dual side cooling half-bridge power module.
