NVG800A75L4DSC2

Dual Side Cooling Half-Bridge Power Module

NVG800A75L4DSC2 Features

* Dual

* Side Cooling

* Integrated Chip Level Temperature and Current Sensor

* Tvj max = 175°C for Continuous Operation

* Low

* stray Inductance

* Low Conduction and Switching Losses

* Automotive Grade

* 4.2 kV Isolated DBC Substrat

NVG800A75L4DSC2 General Description

The NVG800A75L4DSC2 is part of a family of power modules with dual side cooling and compact footprints for Hybrid (HEV) and Electric Vehicle (EV) traction inverter application. The module consists of two narrow mesa Field Stop (FS4) IGBTs in a half

*bridge configuration. The chipset utilizes .

NVG800A75L4DSC2 Datasheet (355.29 KB)

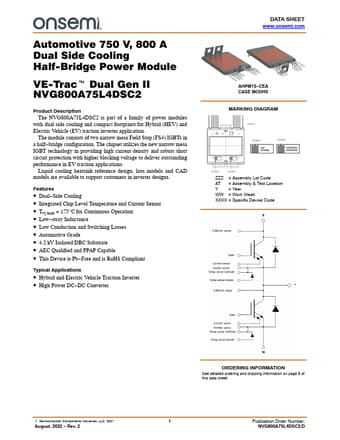

Preview of NVG800A75L4DSC2 PDF

Datasheet Details

Part number:

NVG800A75L4DSC2

Manufacturer:

ON Semiconductor ↗

File Size:

355.29 KB

Description:

Dual side cooling half-bridge power module.
