P6SMB51AT3 600 Watt Peak Power Zener Transient Voltage Suppressors

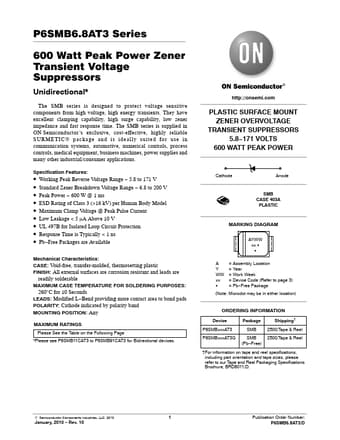

P6SMB6.8AT3 Series 600 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB series is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable SURMETIC® package and is ideally suited for use in communication systems, automotive, numerica.

P6SMB51AT3 Features

* Working Peak Reverse Voltage Range

* 5.8 to 171 V

* Standard Zener Breakdown Voltage Range

* 6.8 to 200 V

* Peak Power

* 600 W @ 1 ms

* ESD Rating of Class 3 (>16 kV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Current
