SB007-03Q Datasheet - ON Semiconductor

SB007-03Q Schottky Barrier Diode

SB007-03Q Features

* Low forward voltage (VF max=0.55V)

* Low switching noise

* Fast reverse recovery time (trr max=10ns)

* Low leakage current and high reliability due to highly reliable planar structure

* Small-sized package permitting SB007-03Q applied sets to be compact

SB007-03Q Datasheet (198.44 KB)

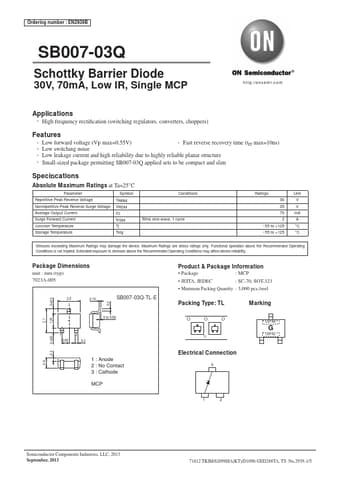

Preview of SB007-03Q PDF
SB007-03Q Datasheet Preview Page 2 SB007-03Q Datasheet Preview Page 3

Datasheet Details

Part number:

SB007-03Q

Manufacturer:

ON Semiconductor ↗

File Size:

198.44 KB

Description:

Schottky barrier diode.
