SB0015-03A - Schottky Barrier Diode

Sanyo Semicon Device

📥 Download Datasheet

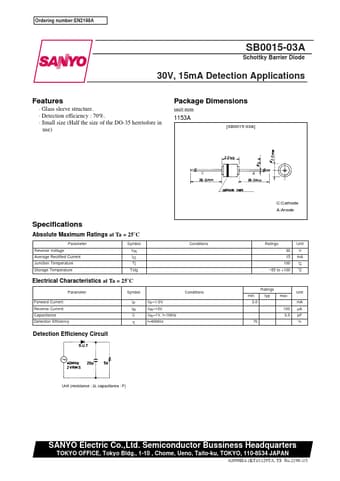

SB0015-03A Datasheet Preview — Preview of SB0015-03A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB0015-03A
Manufacturer	Sanyo Semicon Device
File Size	59.35 KB
Description	Schottky Barrier Diode
Datasheet	SB0015-03A_SanyoSemiconDevice.pdf

SB0015-03A Product details

Features

Glass sleeve structure.
Detection efficiency : 70%.
Small size (Half the size of the DO-35 heretofore in use) Package Dimensions unit:mm 1153A [SB0015-03A] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Reverse Voltage Average Rectified Current Junction Temperature Storage Temperature Symbol VR IO Tj Tstg Electrical Characteristics at Ta = 25˚C Conditions Parameter Forward Current Reverse Current Capacitance Detection Efficiency Symbol IF VF=1.0V IR VR=.
