SBS817 - Schottky Barrier Diode

ON Semiconductor

📥 Download Datasheet

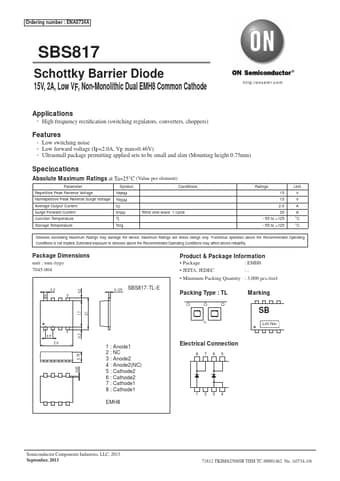

SBS817 Datasheet Preview — Preview of SBS817 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SBS817
Manufacturer	ON Semiconductor ↗
File Size	416.49 KB
Description	Schottky Barrier Diode
Datasheet	SBS817-ONSemiconductor.pdf

SBS817 Product details

Features

Low switching noise.
Low forward voltage (IF=2.0A, VF max=0.46V).
Ultrasmall package permitting applied sets to be small and slim (Mounting height 0.75mm) Speciﬁcations Absolute Maximum Ratings at Ta=25°C (Value per element) Parameter Symbol Conditions Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature VRRM VRSM IO IFSM Tj 50Hz sine wave, 1 cycle Storage Temperature Tstg.
