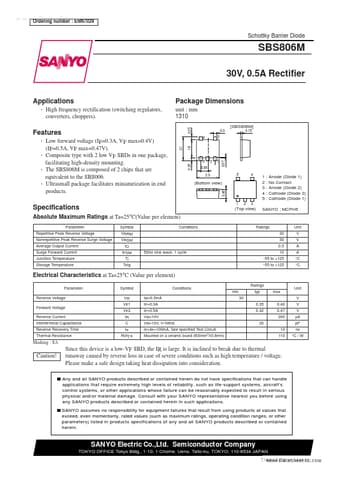

SBS806M Datasheet Preview — Preview of SBS806M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SBS806M
Manufacturer	Sanyo Semicon Device
File Size	76.71 KB
Description	0.5A Rectifier
Datasheet	SBS806M_SanyoSemiconDevice.pdf

SBS806M Product details

Features

0.85 Low forward voltage (IF=0.3A, VF max=0.4V) (IF=0.5A, VF max=0.47V). Composite type with 2 low VF SBDs in one package, facilitating high-density mounting. The SBS806M is composed of 2 chips that are equivalent to the SBS006. Ultrasmall package facilitates miniaturization in end products. 4 2.1 1.6 5 0.25 0.65 2.0 0.07 3 2 1 5 4 (Bottom view) 1 : Anode (Diode 1) 2 : No Contact 3 : Anode (Diode 2) 4 : Cathode (Diode 2) 5 : Cathode (Diode.
