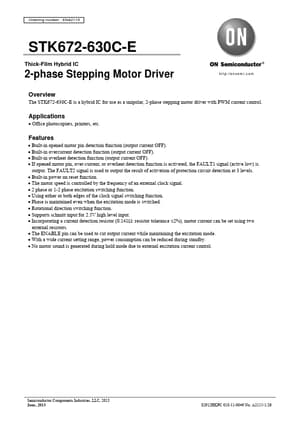

STK672-630C-E - 2-phase Stepping Motor Driver

ON Semiconductor

Datasheet Details

Built-in opened motor pin detection function (output current OFF).
Built-in overcurrent detection function (output current OFF).
Built-in overheat detection function (output current OFF).
If opened motor pin, over-current, or overheat detection function is activated, the FAULT1 signal (active low) is output. The FAULT2 signal is used to output the result of activation of protection circuit detection at 3 levels.
Built-in power on reset function.
