STK672-010 Datasheet - Sanyo Semicon Device

STK672-010 Thick-Film Hybrid IC

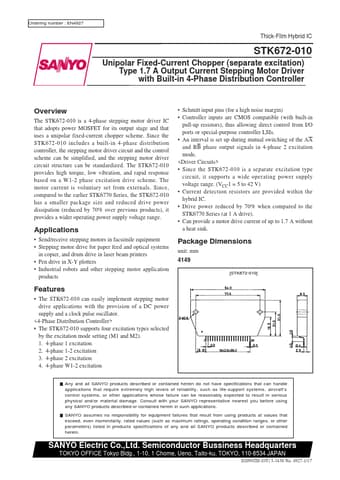

Ordering number : EN4927 Thick-Film Hybrid IC STK672-010 Unipolar Fixed-Current Chopper (separate excitation) Type 1.7 A Output Current Stepping Motor Driver with Built-in 4-Phase Distribution Controller Overview The STK672-010 is a 4-phase stepping motor driver IC that adopts power MOSFET for its output stage and that uses a unipolar fixed-current chopper scheme. Since the STK672-010 includes a built-in 4-phase distribution controller, the stepping motor driver circuit and the control scheme .

STK672-010 Features

* The STK672-010 can easily implement stepping motor drive applications with the provision of a DC power supply and a clock pulse oscillator.

* The STK672-010 supports four excitation types selected by the excitation mode setting (M1 and M2). 1. 4-ph

STK672-010_SanyoSemiconDevice.pdf

STK672-010 Datasheet Preview — Preview of STK672-010 PDF

Datasheet Details

Part number:

STK672-010

Manufacturer:

Sanyo Semicon Device

File Size:

321.57 KB

Description:

Thick-film hybrid ic.
