STK672-050-E Stepping Motor Driver

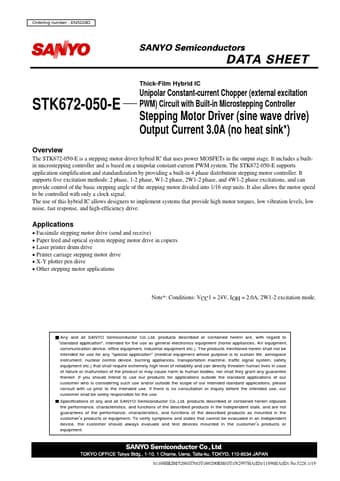

www.DataSheet.co.kr Ordering number : EN5228D Thick-Film Hybrid IC STK672-050-E Overview Unipolar Constant-current Chopper (external excitation PWM) Circuit with Built-in Microstepping Controller Stepping Motor Driver (sine wave drive) Output Current 3.0A (no heat sink ) The STK672-050-E is a stepping motor driver hybrid IC that uses power MOSFETs in the output stage. It includes a builtin microstepping controller and is based on a unipolar constant-current PWM system. The STK672-050-E.

STK672-050-E Features

* Can implement stepping motor drive systems simply by providing a DC power supply and a clock pulse generator.

* One of five drive types can be selected with the drive mode settings (M1, M2, and M3) 1) 2 phase excitation drive 2) 1-2 phase excitation drive 3

STK672-050-E_SanyoSemiconDevice.pdf

STK672-050-E Datasheet Preview — Preview of STK672-050-E PDF

Datasheet Details

Part number:

STK672-050-E

Manufacturer:

Sanyo Semicon Device

File Size:

277.11 KB

Description:

Stepping motor driver.
