SZ1SMB10CAT3G

600 Watt Peak Power Zener Transient Voltage Suppressors

SZ1SMB10CAT3G Features

* Working Peak Reverse Voltage Range

* 10 V to 75 V

* Standard Zener Breakdown Voltage Range

* 11.7 V to 91.7 V

* Peak Power

* 600 Watts @ 1 ms

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Le

SZ1SMB10CAT3G Datasheet (147.41 KB)

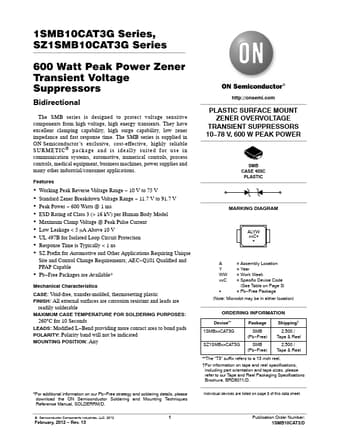

Preview of SZ1SMB10CAT3G PDF

Datasheet Details

Part number:

SZ1SMB10CAT3G

Manufacturer:

ON Semiconductor ↗

File Size:

147.41 KB

Description:

600 watt peak power zener transient voltage suppressors.
1SMB10CAT3G Series, SZ1SMB10CAT3G Series 600 Watt Peak Power Zener Transient Voltage Suppressors Bidirectional The SMB series is designed to protect .
