SZ1SMA10CAT3G - 400 Watt Peak Power Zener Transient Voltage Suppressors

ON Semiconductor

📥 Download Datasheet

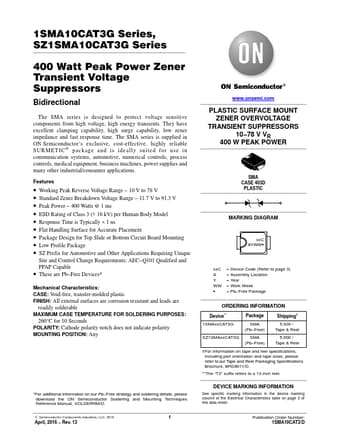

SZ1SMA10CAT3G Datasheet Preview — Preview of SZ1SMA10CAT3G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SZ1SMA10CAT3G
Manufacturer	ON Semiconductor ↗
File Size	59.41 KB
Description	400 Watt Peak Power Zener Transient Voltage Suppressors
Datasheet	SZ1SMA10CAT3G-ONSemiconductor.pdf

SZ1SMA10CAT3G Product details

Features

Working Peak Reverse Voltage Range.
10 V to 78 V.
Standard Zener Breakdown Voltage Range.
11.7 V to 91.3 V.
Peak Power.
400 Watts @ 1 ms.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
Response Time is Typically < 1 ns.
Flat Handling Surface for Accurate Placement.
Package Design for Top Slide or Bott.
