SZ1SMA12AT3G

TVS Diodes

Littelfuse

SZ1SMA12AT3G Features

* Working Peak Reverse Voltage Range

* 5.0 V to 78 V

* Standard Zener Breakdown Voltage Range

* 6.7 V to 91.25 V

* Peak Power

* 400 W @ 1 ms

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Response Time is Typically < 1 ns

SZ1SMA12AT3G General Description

The SZ1SMA5.0AT3G series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1SMA5.0AT3G series is supplied in the Littelfuse exclusive, cost-e.

SZ1SMA12AT3G Datasheet (340.41 KB)

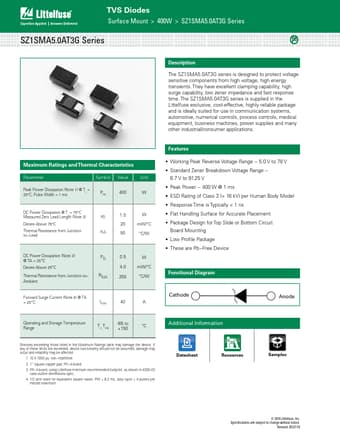

SZ1SMA12AT3G Datasheet Preview — Preview of SZ1SMA12AT3G PDF

Datasheet Details

Part number:

SZ1SMA12AT3G

Manufacturer:

Littelfuse ↗

File Size:

340.41 KB

Description:

Tvs diodes.
