SZ1SMB5918BT3G-VF01, SZ1SMB5914BT3G-VF01 Datasheet - onsemi

SZ1SMB5918BT3G-VF01 3 Watt Plastic Surface Mount Zener Voltage Regulators

SZ1SMB5918BT3G-VF01 Features

* Zener Voltage Range

* 3.3 V to 100 V

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Flat Handling Surface for Accurate Placement

* Package Design for Top Side or Bottom Circuit Board Mounting

* SZ Prefix for Automotive and Other Application

SZ1SMB5914BT3G-VF01-onsemi.pdf

This datasheet PDF includes multiple part numbers: SZ1SMB5918BT3G-VF01, SZ1SMB5914BT3G-VF01. Please refer to the document for exact specifications by model.

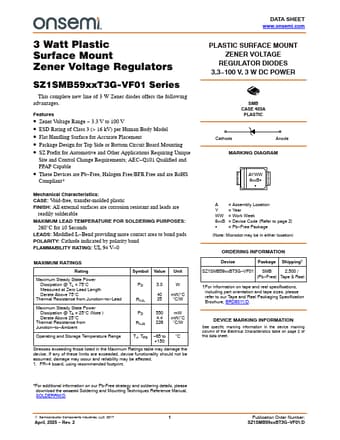

SZ1SMB5918BT3G-VF01 Datasheet Preview Page 2 SZ1SMB5918BT3G-VF01 Datasheet Preview Page 3

Datasheet Details

Part number:

SZ1SMB5918BT3G-VF01, SZ1SMB5914BT3G-VF01

Manufacturer:

onsemi

File Size:

208.26 KB

Description:

3 watt plastic surface mount zener voltage regulators.

Note:

This datasheet PDF includes multiple part numbers: SZ1SMB5918BT3G-VF01, SZ1SMB5914BT3G-VF01.
Please refer to the document for exact specifications by model.
