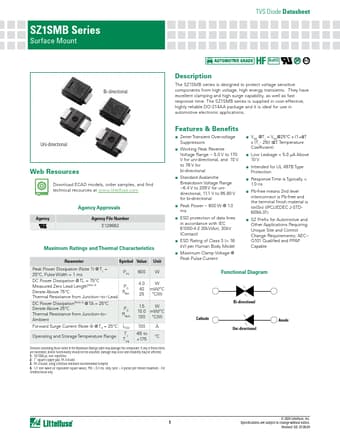

SZ1SMB54CAT3G, SZ1SMB5.0AT3G - TVS Diodes

Littelfuse

Datasheet Details

Part number	SZ1SMB54CAT3G, SZ1SMB5.0AT3G
Manufacturer	Littelfuse ↗
File Size	823.74 KB
Description	TVS Diodes
Datasheet	SZ1SMB5.0AT3G-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SZ1SMB54CAT3G, SZ1SMB5.0AT3G. Please refer to the document for exact specifications by model.

The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

& Benefits.
Zener Transient Overvoltage Suppressors.
Working Peak Reverse Voltage Range.
5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional.
Standard Avalanche Breakdown Voltage Range.
6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-directional.
Peak Power.
600 W @ 1.0 ms.
ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact).
ESD Rating of Class 3 (> 16 kV) per Human Body M.
