SZ1SMB5924BT3G-VF01, SZ1SMB5914BT3G-VF01 3 Watt Plastic Surface Mount Zener Voltage Regulators

SZ1SMB5924BT3G-VF01 Description

DATA SHEET www.onsemi.com 3 Watt Plastic Surface Mount Zener Voltage Regulators SZ1SMB59xxT3G-VF01 Series This complete new line of 3 W Zener diodes.

SZ1SMB5924BT3G-VF01 Features

* Zener Voltage Range
* 3.3 V to 100 V
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Flat Handling Surface for Accurate Placement
* Package Design for Top Side or Bottom Circuit Board Mounting

SZ1SMB5924BT3G-VF01 Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant
* Mechanical Characteristics: CASE: Void-free, transfer-molded plastic FINISH: All external surfaces are cor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SZ1SMB5924BT3G-VF01, SZ1SMB5914BT3G-VF01. Please refer to the document for exact specifications by model.

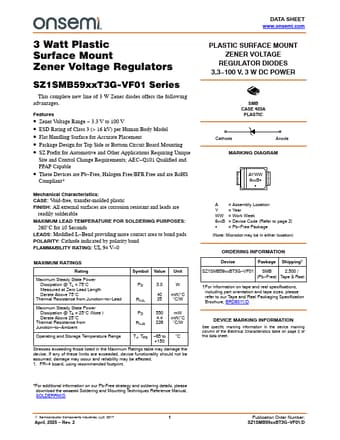

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SZ1SMB5924BT3G-VF01, SZ1SMB5914BT3G-VF01
Manufacturer
onsemi
File Size
208.26 KB
Datasheet
SZ1SMB5914BT3G-VF01-onsemi.pdf
Description
3 Watt Plastic Surface Mount Zener Voltage Regulators
Note
This datasheet PDF includes multiple part numbers: SZ1SMB5924BT3G-VF01, SZ1SMB5914BT3G-VF01.
Please refer to the document for exact specifications by model.
