SZ1SMB58AT3G

TVS Diodes

SZ1SMB58AT3G Features

* & Benefits

* Zener Transient Overvoltage Suppressors

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional

* Standard Avalanche Breakdown Voltage Range

* 6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-di

SZ1SMB58AT3G General Description

The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping and high surge capability, as well as fast response time. The SZ1SMB series is supplied in cost-effective, highly reliable DO-214AA package and it is ideal fo.

SZ1SMB58AT3G Datasheet (823.74 KB)

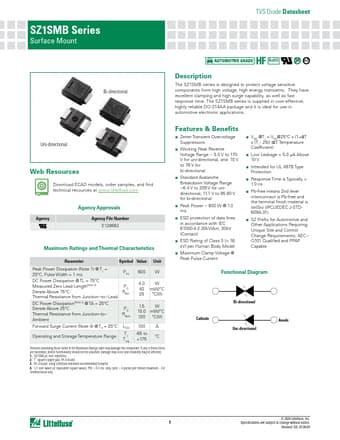

Preview of SZ1SMB58AT3G PDF

Datasheet Details

Part number:

SZ1SMB58AT3G

Manufacturer:

Littelfuse ↗

File Size:

823.74 KB

Description:

Tvs diodes.
