SZESD7351 ESD Protection Diode

of survivability specs.  Semiconductor Components Industries, LLC, 2014 1 February, 2024 * Rev. 6 Publication Order Number: ESD7351/D ESD7351, SZESD7351 Series ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC.

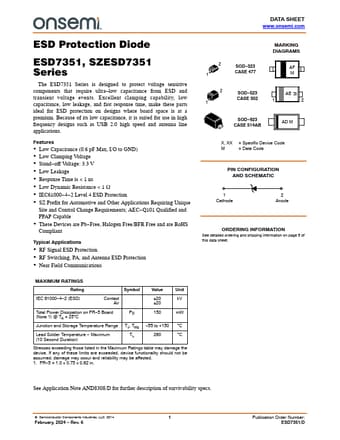

DATA SHEET www.onsemi.com ESD Protection Diode ESD7351, SZESD7351 Series The ESD7351 Series is designed to protect voltage sensitive components that require ultra low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high .

SZESD7351 Features

* Low Capacitance (0.6 pF Max, I/O to GND)

* Low Clamping Voltage

* Stand

* off Voltage: 3.3 V

* Low Leakage

* Response Time is < 1 ns

* Low Dynamic Resistance < 1 W

* IEC61000

* 4

* 2 Level 4 ESD Protection

* SZ Prefix for Automotive and Other Appli
