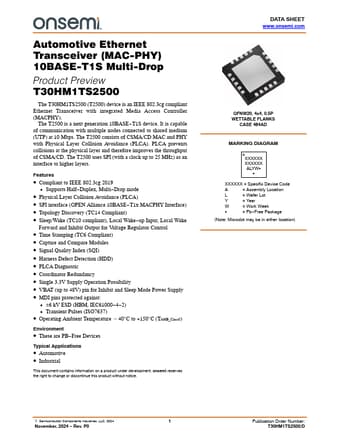

T30HM1TS2500 Automotive Ethernet Transceiver

Automotive Ethernet Transceiver (MAC-PHY) 10BASE-T1S Multi-Drop Product Preview T30HM1TS2500 The T30HM1TS2500 (T2500) device is an IEEE 802.3cg compliant Ethernet Transceiver with integrated Media Access Controller (MACPHY). The T2500 is a next generation 10BASE T1S device. It is capable of communication with multiple nodes connected to shared medium (UTP) at 10 Mbps. The T2500 consists of CSMA/CD MAC and PHY with Physical Layer Collision Avoidance (PLCA). PLCA prevents collisions at the.

T30HM1TS2500 Features

* Compliant to IEEE 802.3cg 2019

* Supports Half

* Duplex, Multi

* Drop mode

* Physical Layer Collision Avoidance (PLCA)

* SPI interface (OPEN Alliance 10BASE

* T1x MACPHY Interface)

* Topology Discovery (TC14 Compliant)

* Sleep/Wake
