T3048 T3/DS3/E3/STS-1 TRANSFORMERS

T3/DS3/E3/STS-1 TRANSFORMERS Eight Transformers Designed for T3, DS3, E3 and STS-1 Interface Eight transformers in a surface mount package Models matched to leading transceiver ICs Return loss meets requirements of G.703 Recognized by UL1950 (some parts pending approval) Isolation voltage: 1500Vrms Electrical Specifications @ 25°C RoHS-5 RoHS-6 Turns Ratio OCL Primary Compliant PN# Compliant PN# (Pri:Sec ±2%) @ 25°C (µH MIN) T3048 T3048NL 1:1 40 LL CW/W (µH MAX) (pF MAX) .150 10 Isola.

T3048-Pulse.pdf

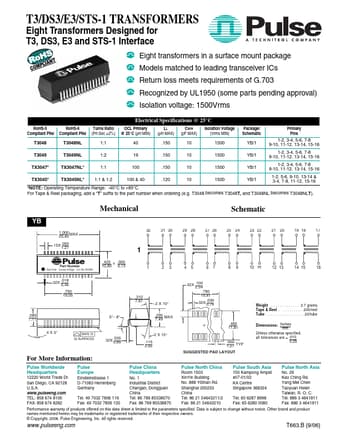

T3048 Datasheet Preview — Preview of T3048 PDF

Datasheet Details

Part number:

T3048

Manufacturer:

Pulse

File Size:

83.87 KB

Description:

T3/ds3/e3/sts-1 transformers.
