TIP30, TIP29, Complementary Silicon Plastic Power Transistors

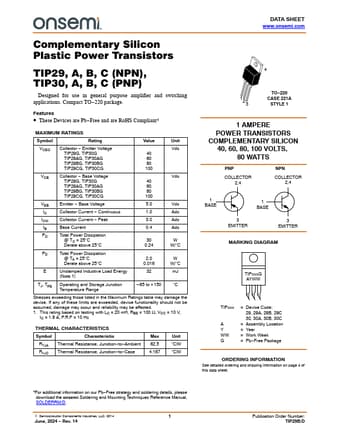

Complementary Silicon Plastic Power Transistors TIP29, A, B, C (NPN), TIP30, A, B, C (PNP) Designed for use in general purpose amplifier and switchin.

TIP29-ONSemiconductor.pdf

TIP30 Datasheet Preview — This datasheet PDF includes multiple part numbers: TIP30, TIP29. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TIP30, TIP29

Manufacturer:

ON Semiconductor ↗

File Size:

245.12 KB

Description:

Complementary Silicon Plastic Power Transistors

Note:

This datasheet PDF includes multiple part numbers: TIP30, TIP29.
Please refer to the document for exact specifications by model.

Features

* These Devices are Pb
* Free and are RoHS Compliant
* MAXIMUM RATINGS Symbol Rating Value Unit VCEO Collector
* Emitter Voltage TIP29G, TIP30G TIP29AG, TIP30AG TIP29BG, TIP30BG TIP29CG, TIP30CG Vdc 40 60 80 100 VCB Collector
* Base Voltage TIP29G, TIP30G

Applications

* Compact TO
