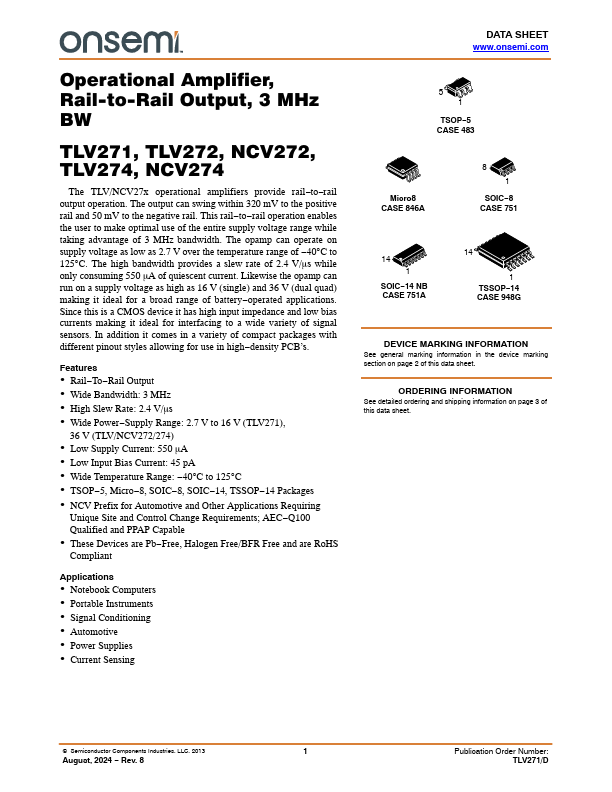

Part number: TLV271
Manufacturer: ON Semiconductor (https://www.onsemi.com/)
File Size: 1.42MB
Download: 📄 Datasheet
Description: Operational Amplifier
* Rail−To−Rail Output
* Wide Bandwidth: 3 MHz
* High Slew Rate: 2.4 V/ms
* Wide Power−Supply Range: 2.7 V to 16 V (TLV271),
36 V (TLV/NCV272/274)
* Lo.
Since this is a CMOS device it has high input impedance and low bias currents making it ideal for interfacing to a wide.
