TPS2399 -48V Hot Swap Controller

Pin Number Pin Name Description 2 EN Enable input to turn on/off power to the load 1 PG Open *drain, active *low indication of a load power good condition. 3 FLTTIME Connection for user *programming of the fault timeout period. 7 GATE Gate drive for external N .

TPS2398, TPS2399 -48 V Hot Swap Controller for Redundant Supply Systems The TPS2398 and TPS2399 integrated circuits are hot swap power managers optimized for use in nominal 48 V systems. They incorporate an improved circuit breaker response that provides rapid protection from short circuits, while still enabling plug ins to tolerate large transients that can be generated by the sudden switchover to a higher voltage supply. They are designed for supply voltage ranges up to .

TPS2399 Features

* Wide Input Supply:

* 36 V to

* 80 V

* Transient Rating to

* 100 V

* Improved Transient Response

* Εnable Input (EN)

* Programmable Current Limit

* Programmable Current Slew Rate

* Fault Timer to Eliminate Nuisance Trips

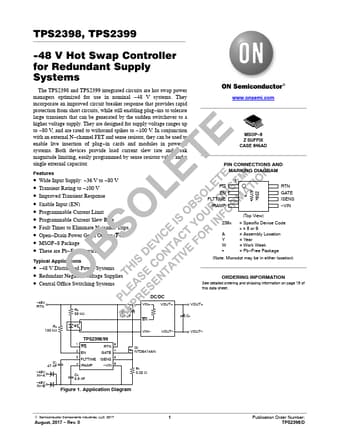

TPS2399 Datasheet (660.69 KB)
