TPS2393 - -48V HOT SWAP

Product Overview

Texas Instruments

Datasheet Details

Part number	TPS2393
Manufacturer	Texas Instruments
File Size	523.83 KB
Description	-48V HOT SWAP
Datasheet	TPS2393 Datasheet

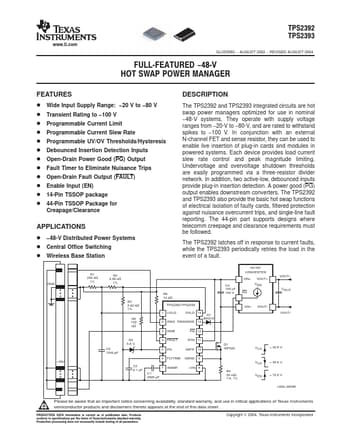

Additional preview pages of the TPS2393 datasheet.

Product details

Description

The TPS2392 and TPS2393 integrated circuits are hot swap power managers optimized for use in nominal 48-V systems. 20-V to 80-V, and are rated to withstand spikes to 100 V.

Features

D Wide Input Supply Range:.
20 V to.
80 V D Transient Rating to.
100 V D Programmable Current Limit D Programmable Current Slew Rate D Programmable UV/OV Thresholds/Hysteresis D Debounced Insertion Detection Inputs D Open-Drain Power Good (PG) Output D Fault Timer to Eliminate Nuisance Trips D Open-Drain Fault Output (FAULT) D Enable Input (EN) D 14-Pin TSSOP package D 44-Pin TSSOP Package for Creapage/Clearance.
