TPS232 Thermopile Sensor

Metal cap with integrated IR window TO-46 (3 isolated + 1 ground) pins with solderable gold coating Si-based interference IR longpass filter Thermistor 100 kΩ The sensor is sealed in a dry nitrogen environment and gross leak proof PerkinElmer Logo “P” + device number xxxx + 3 digits date code YWW 2.

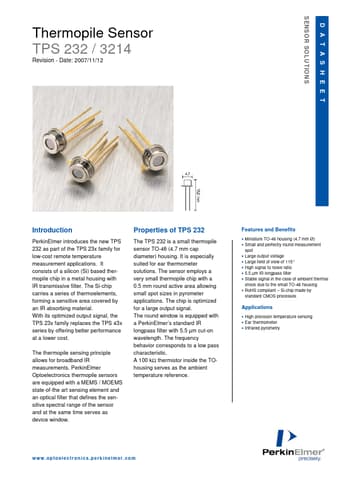

DATASHEET SENSOR SOLUTIONS Thermopile Sensor TPS 232 / 3214 Revision - Date: 2007/11/12 Introduction PerkinElmer introduces the new TPS 232 as part of the TPS 23x family for low-cost remote temperature measurement applications. It consists of a silicon (Si) based thermopile chip in a metal housing with IR transmissive filter. The Si-chip carries a series of thermoelements, forming a sensitive area covered by an IR absorbing material. With its optimized output signal, the TPS 23x family replace.

TPS232 Features

* Miniature TO-46 housing (4.7 mm Ø)

* Small and perfectly round measurement spot

* Large output voltage

* Large field of view of 115°

* High signal to noise ratio

* 5.5 µm IR longpass filter

* Stable signal in the case of ambient thermal shock

TPS232 Datasheet (235.53 KB)

TPS232 Datasheet Preview — Preview of TPS232 PDF

Datasheet Details

Part number:

TPS232

Manufacturer:

PerkinElmer Optoelectronics

File Size:

235.53 KB

Description:

Thermopile sensor.
