TC2004A Datasheet - OPPOD

TC2004A LCD

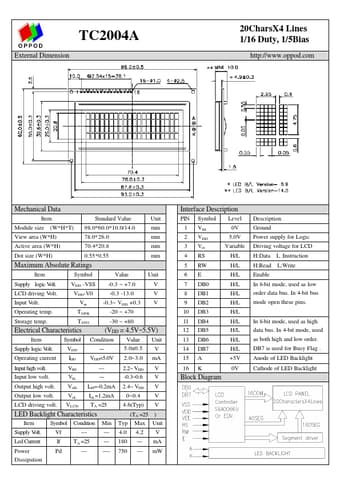

TC2004A External Dimension 20CharsX4 Lines 1/16 Duty, 1/5Bias http://www.oppod.com Mechanical Data Item Standard Value Unit Module size (W H T) 98.0 60.0 10.0/14.0 mm View area (W H) 78.0 26.0 mm Active area (W H) 70.4 20.8 mm Dot size (W H) 0.55 0.55 mm Maximum Absolute Ratings Item Symbol Value Unit Supply logic Volt. VDD -VSS -0.3 ~ +7.0 V LCD driving Volt. VDD-V0 -0.3 -13.0 V Input Volt. Vin -0.3~ VDD +0.3 V Operating temp.

TC2004A Datasheet (27.27 KB)

TC2004A Datasheet Preview — Preview of TC2004A PDF

Datasheet Details

Part number:

TC2004A

Manufacturer:

OPPOD

File Size:

27.27 KB

Description:

Lcd.
