TC2004A-05 Datasheet - Pollin Electronic

TC2004A-05 LCD

1 VSS 0V Ground. 2 VDD +5.0V Power supply for logic operating. 3 V0 * Adjusting supply voltage for LCD driving. A signal for selecting registers: 4 RS H/L 1: Data Register (for read and write) 0: Instruction Register (for write), Busy flag-Address Counter (for read). 5 R/W H/L R/W.

TC2004A-05-PollinElectronic.pdf

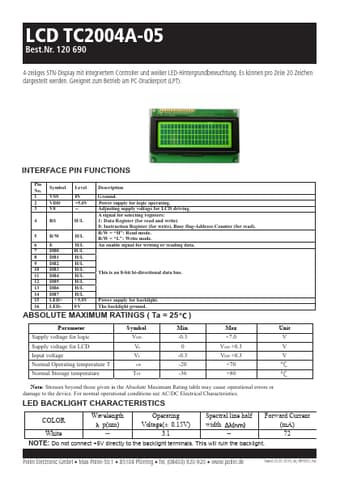

Preview of TC2004A-05 PDF
TC2004A-05 Datasheet Preview Page 2

Datasheet Details

Part number:

TC2004A-05

Manufacturer:

Pollin Electronic

File Size:

444.50 KB

Description:

Lcd.
