OPV214 Datasheet PDF (Vertical Cavity Surface Emitting Laser)

OPV214 - Vertical Cavity Surface Emitting Laser

Description

The OPV214 is a high performance 850nm VCSEL packaged for high speed communication links.

OPV214 combines all the performance advantages of a VCSEL with the addition of a power monitor diode for precise control of optical power.

Features

850 nm VCSEL technology High thermal stability Up to 1.25 Gbps Recommended for multimode fiber.

Datasheet Details

Part number	OPV214
Manufacturer	OPTEK Technologies
File Size	267.51 KB
Description	Vertical Cavity Surface Emitting Laser
Datasheet	OPV214 Datasheet

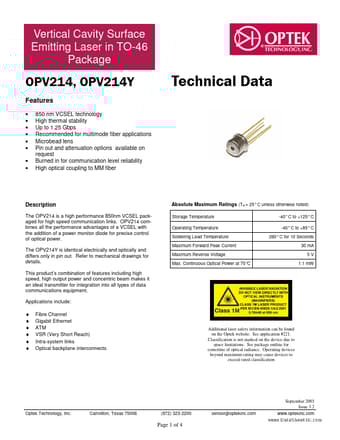

Additional preview pages of the OPV214 datasheet.

📁 Similar Datasheet

OPV300 - Emitting Laser (TT)

OPV302 - Emitting Laser (TT)

OPV310 - Emitting Laser (TT)

OPV310Y - Emitting Laser (TT)

OPV314 - Emitting Laser (TT)

OPV314AT - Vertical Cavity Surface Emitting Laser (TT)

OPV314Y - Emitting Laser (TT)

OPV314YAT - Vertical Cavity Surface Emitting Laser (TT)

OPV314YBT - Vertical Cavity Surface Emitting Laser (TT)

OPV315BT - Emitting Laser (TT)

Full PDF Text Transcription

Click to expand full text

Vertical Cavity Surface Emitting Laser in TO-46 Package Features • • • • • • • • 850 nm VCSEL technology High thermal stability Up to 1.25 Gbps Recommended for multimode fiber applications Microbead lens Pin out and attenuation options available on request Burned in for communication level reliability High optical coupling to MM fiber Description The OPV214 is a high performance 850nm VCSEL packaged for high speed communication links. OPV214 combines all the performance advantages of a VCSEL with the addition of a power monitor diode for precise control of optical power. The OPV214Y is identical electrically and optically and differs only in pin out. Refer to mechanical drawings for details.
