4N22AU - Surface Mount Optically Coupled Isolators

Datasheet Summary

Description

The 4N22AU, 4N23AU, and 4N24AU series are DESC qualified, surface mount optically coupled isolators.

High reliability processing on the devices is performed in accordance with MIL-PRF19500/486.

Features

  • JANTX, JANTXV qualified per MILPRF-19500/486.
  • Surface Mountable.
  • 1 kV Electrical Isolation.
  • Base contact provided for conventional transistor biasing.

📥 Download Datasheet

Datasheet preview – 4N22AU

Datasheet Details

Part number 4N22AU
Manufacturer OPTEK
File Size 253.34 KB
Description Surface Mount Optically Coupled Isolators
Datasheet download datasheet 4N22AU Datasheet
Additional preview pages of the 4N22AU datasheet.

📁 Similar Datasheet

  • 4N22A - Hi-Reliability Optically Coupled Isolator (TT)
  • 4N22A - JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS (Micropac Industries)
  • 4N22 - JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS (Micropac Industries)
  • 4N22 - Hi-Reliability Optically Coupled Isolator (TT)
  • 4N22TX - Hi-Reliability Optically Coupled Isolator (TT)
  • 4N22U - 6-Pin LCC Optocouplers (Micropac Industries)
  • 4N23 - JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS (Micropac Industries)
  • 4N23 - Hi-Reliability Optically Coupled Isolator (TT)
  • 4N23A - Hi-Reliability Optically Coupled Isolator (TT)
  • 4N23A - JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS (Micropac Industries)
Other Datasheets by OPTEK
  • 4N23AU - Surface Mount Optically Coupled Isolators
  • 4N24AU - Surface Mount Optically Coupled Isolators

Full PDF Text Transcription

Click to expand full text

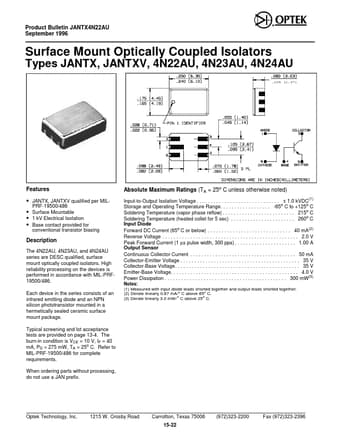

Product Bulletin JANTX4N22AU September 1996 Surface Mount Optically Coupled Isolators Types JANTX, JANTXV, 4N22AU, 4N23AU, 4N24AU .058 (1.47) Features • JANTX, JANTXV qualified per MILPRF-19500/486 • Surface Mountable • 1 kV Electrical Isolation • Base contact provided for conventional transistor biasing Description The 4N22AU, 4N23AU, and 4N24AU series are DESC qualified, surface mount optically coupled isolators. High reliability processing on the devices is performed in accordance with MIL-PRF19500/486. Each device in the series consists of an infrared emitting diode and an NPN silicon phototransistor mounted in a hermetically sealed ceramic surface mount package. Absolute Maximum Ratings (TA = 25o C unless otherwise noted) Input-to-Output Isolation Voltage . . . . . . . . . . . . . .
